Lift and Slide Panorama Patio Door (3-glazing)

Product code: PAN-GULU

Get a Quote

Add to compare

Standard Configuration

Near zereo energy home

Additional Options

Sound insulation glasses

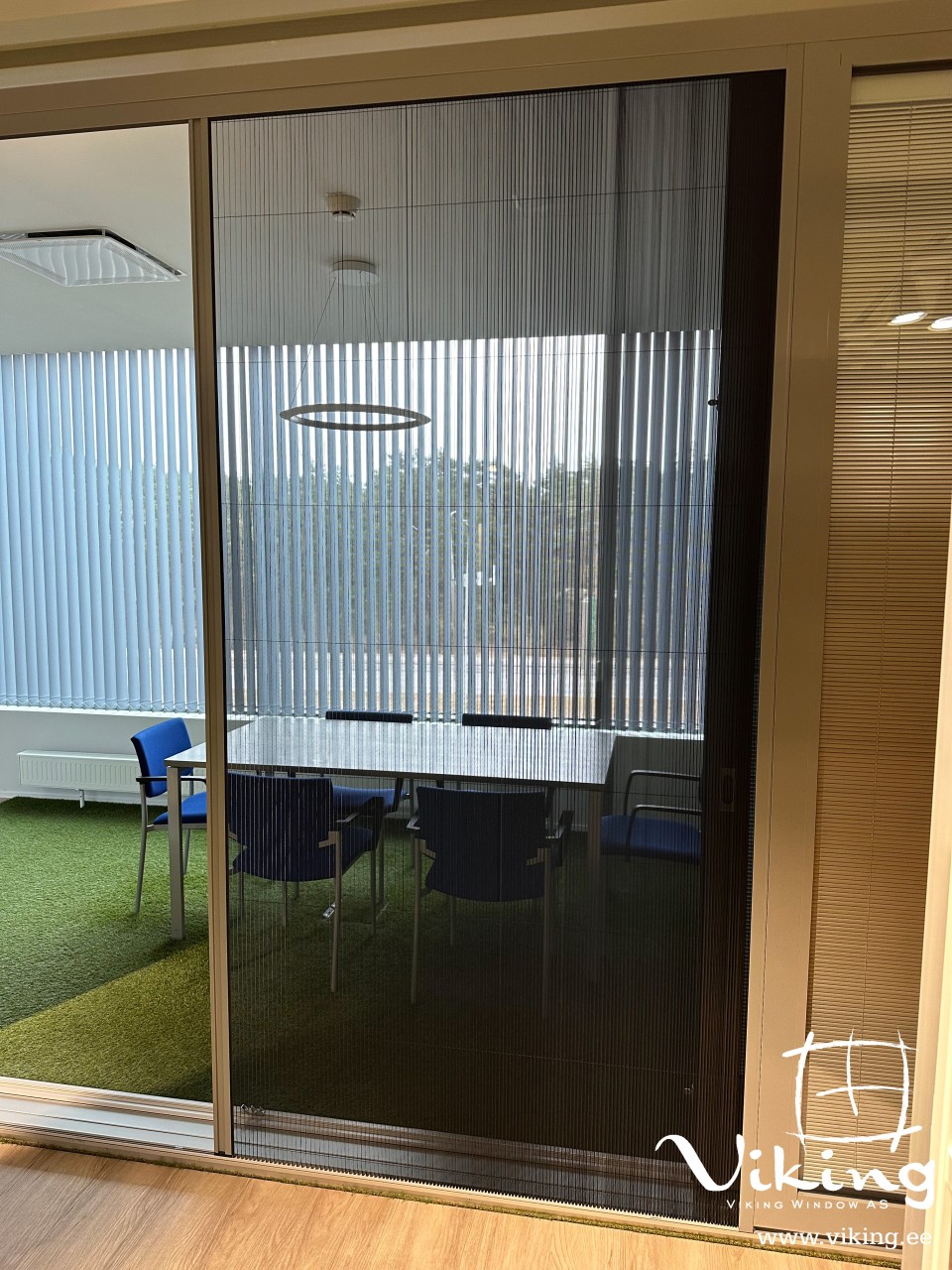

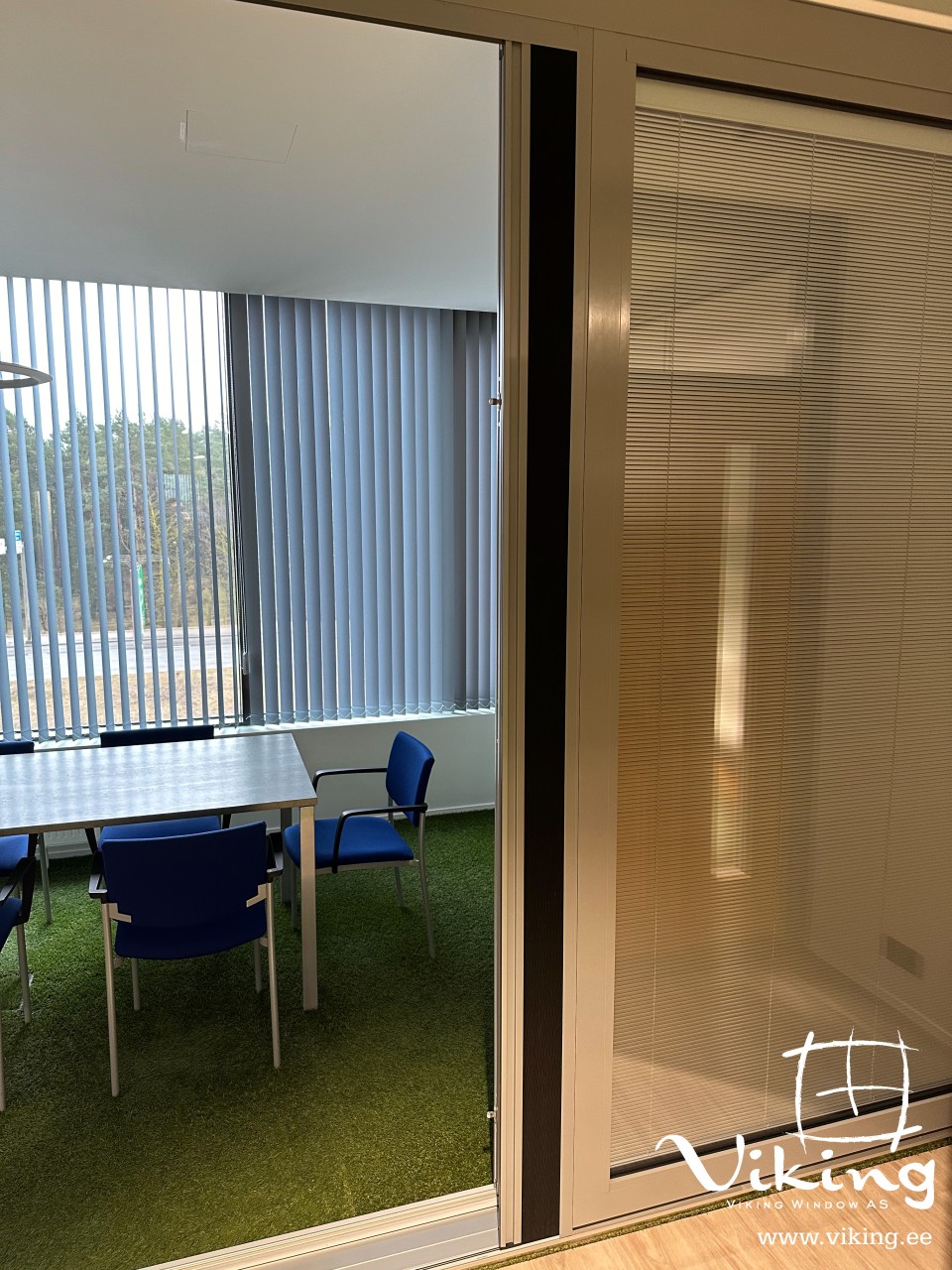

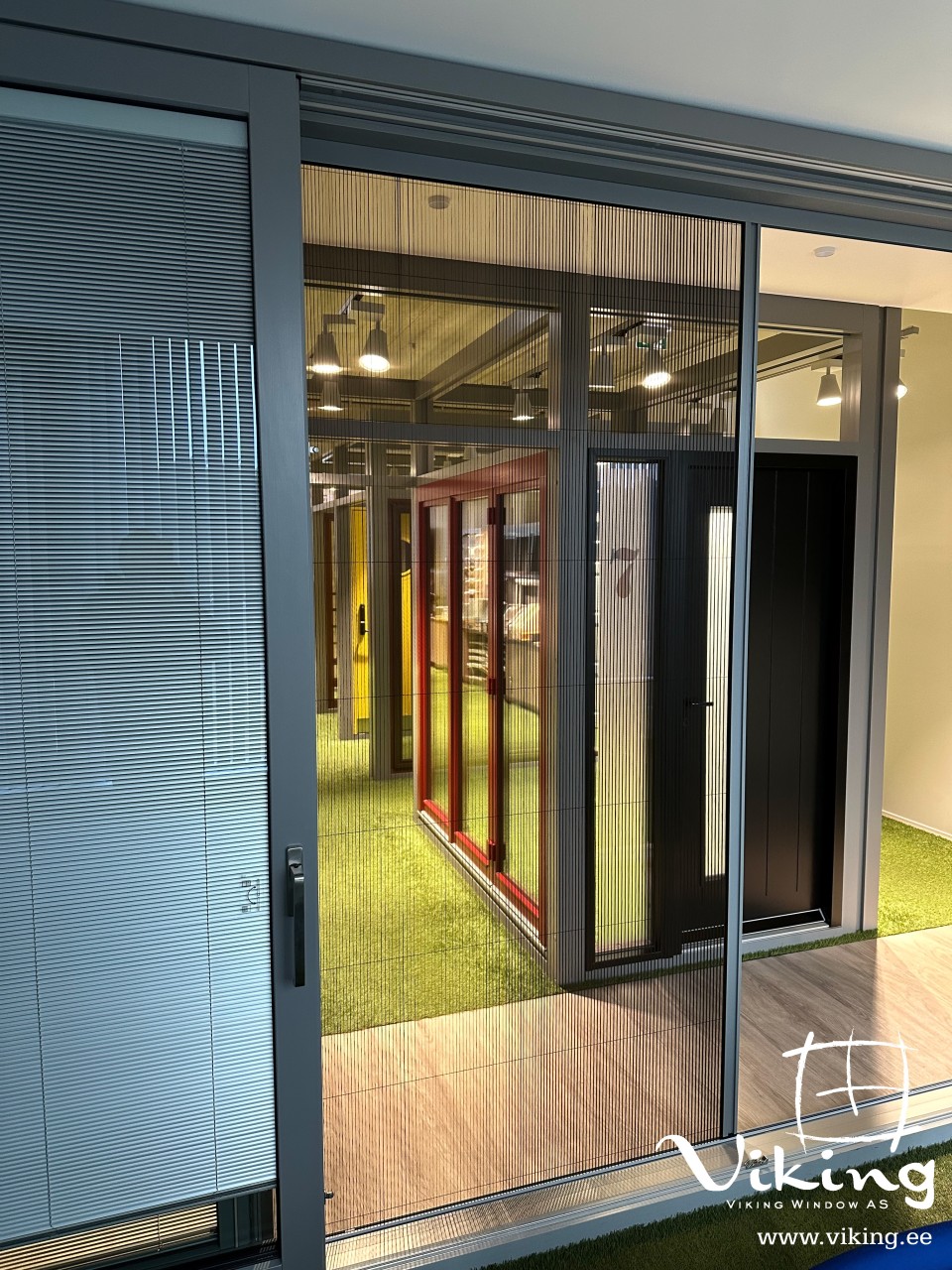

Sun protection

PAS24 solution

Note: U-value (0.60 – 1.2) indicates thermal transmittance of window. Smaller value equals better thermal insulation.

Aluminium Cladding	NB! Available only as aluclad product
Glazing	52 mm 3-glazing, two LowE glasses, argon filled
Frame Depth	211 mm ( with alucladding)
Sound Insulation	Rw = 34 dB (-1;-4) - standard 3-glazing
Material of Sash and Frame	Glue-lam pine; quality class A1-A3
Number of sash gaskets	2 sash gaskets
Color of sash gaskets	Black
Thermal transmittance	Uw = 0.75 W/m²K
Hardware	GU lift and slide door hardware - concealed
Air tightness	Class 4 (600 Pa)
Water tightness	Class E750 (750 Pa)
Resistance to wind load	Class 4C (1600 Pa)
Dimensions	A-scheme: W 5 900 mm x H 2 600 mm C-scheme: W 8 500 mm x H 2 600 mm NB! Possible to order as an assembly kit - final assembly on site.

A-scheme

C-scheme

Material of frame and sash

Glue-lam pine, Nordic timber quality class A1-A3

Finishing

Teknos Aquatop

RAL; NCS and translusent systems:

Glasing options

Click on the picture below to browse for more:

Drawings: Aluclad Sliding Door PDF and DWG

Lift and Slide Panorama Patio Door (3-glazing)

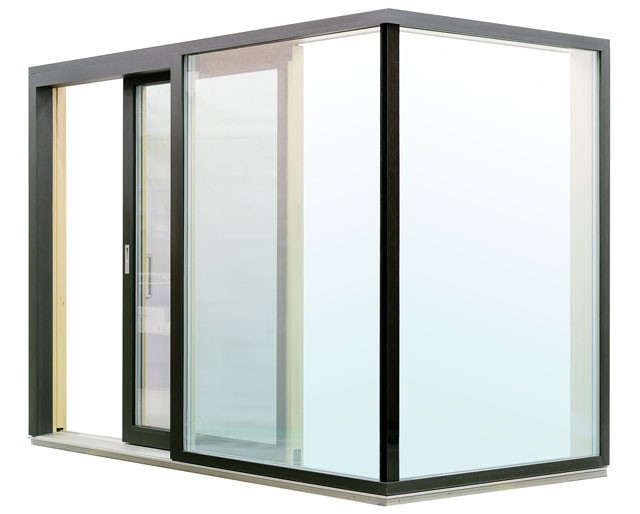

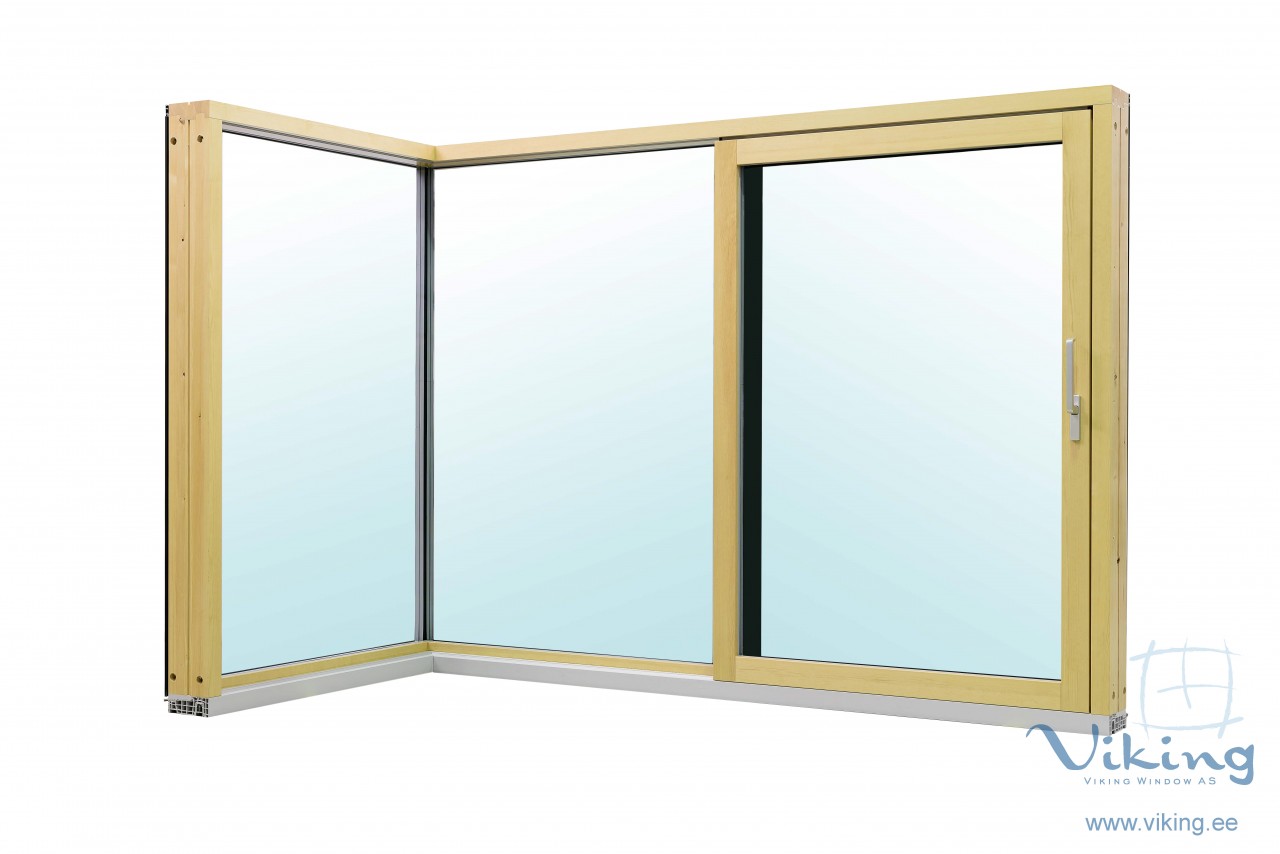

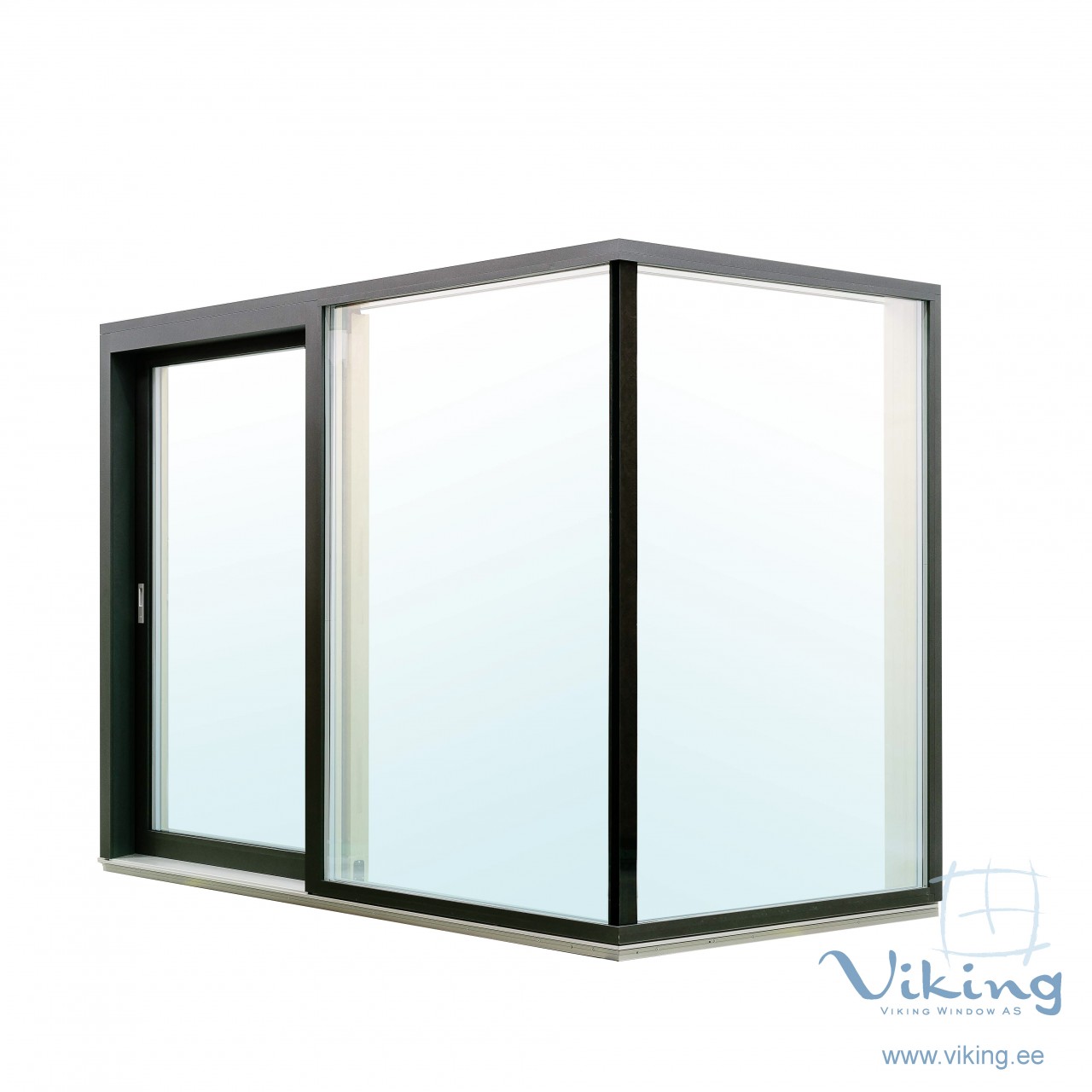

Lift and Slide Panorama Patio Door is a modern solution with even broader view and more light. It has parallel sliding sash but on the fixed side of the door is no sash anymore. The glazing is assembled directly into the frame.

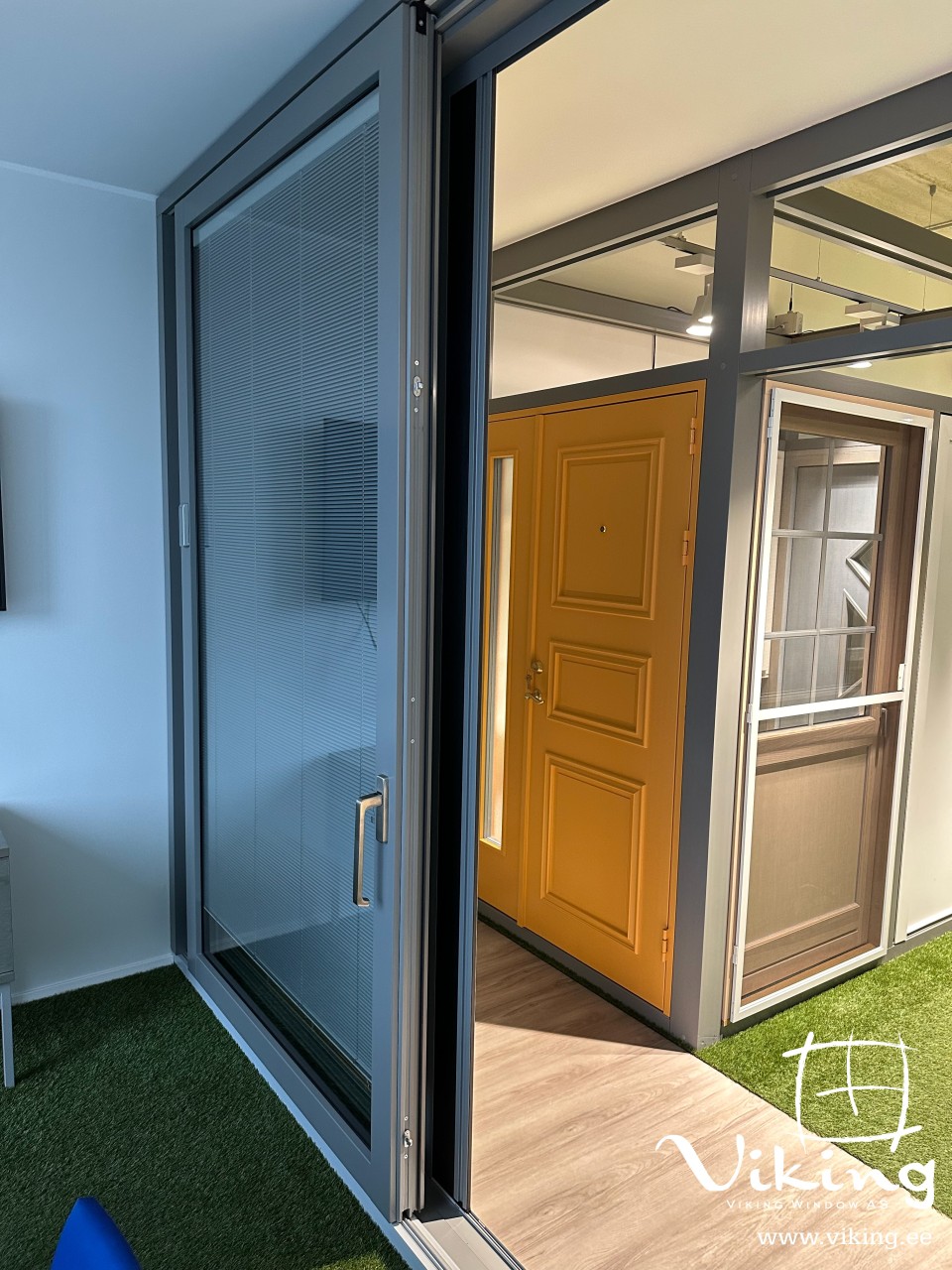

Viking Window sliding patio doors are equipped with high quality and modern GU hinges system. The espagnolette and strong handle enable convenient operating and possibility to close door in ventilation position.

Lift and Slide Panorama Patio Door is available only as aluclad product. Energy efficient triple glazing (total thickness 52 mm) ensures U-values as low as 0.80 W/m2K

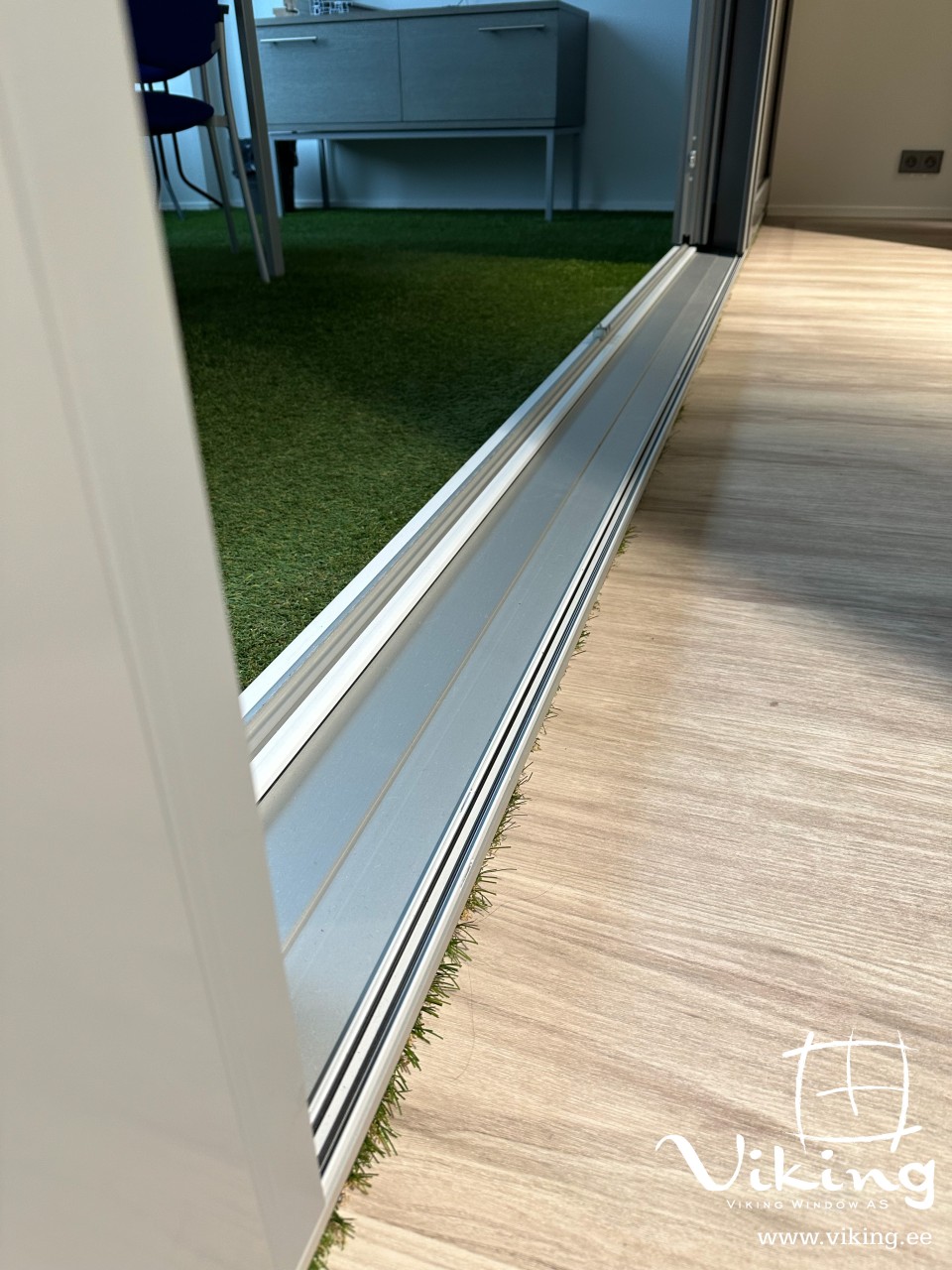

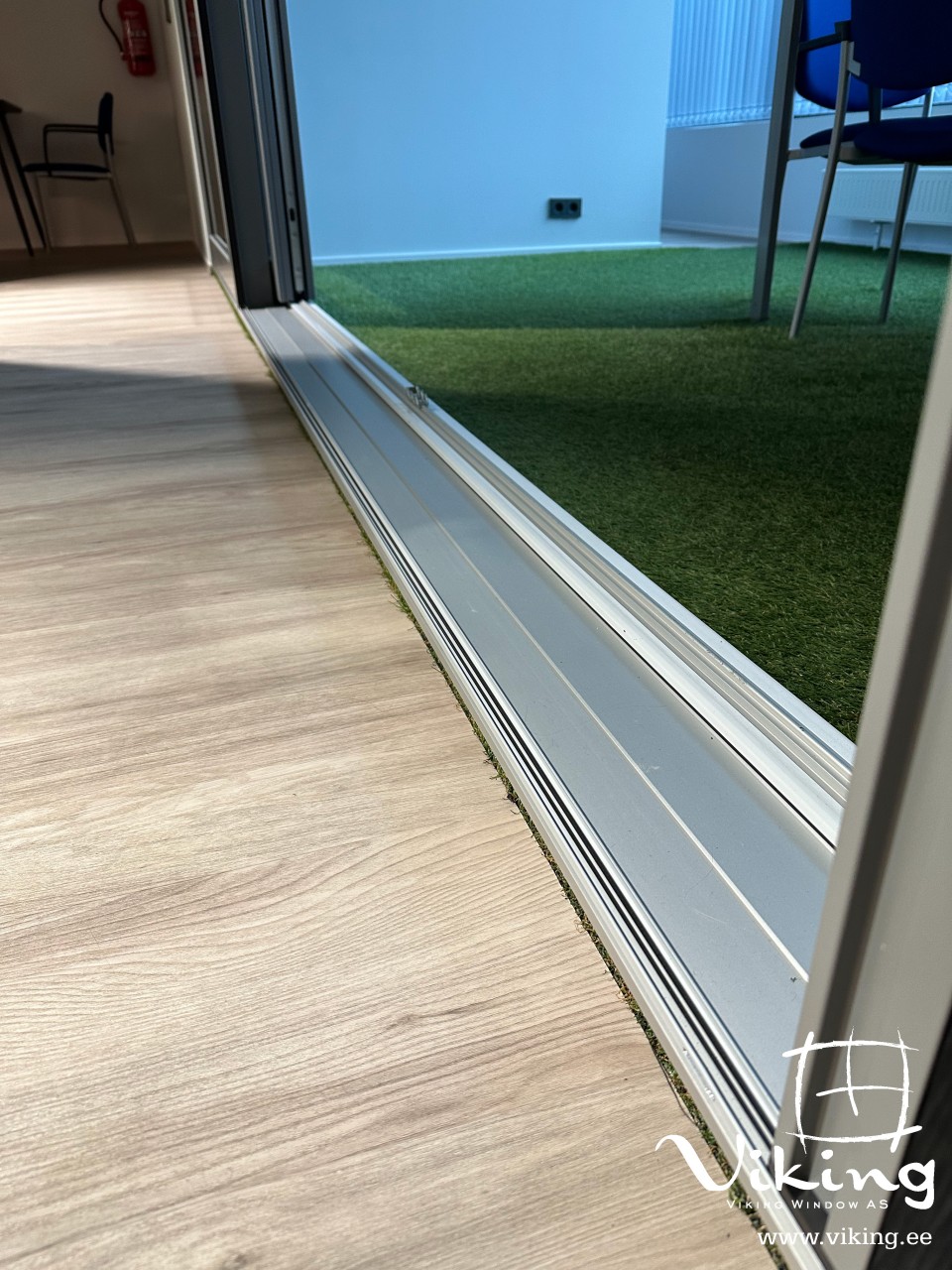

Improvements on the hardware: concealed guide rails and stoppers.

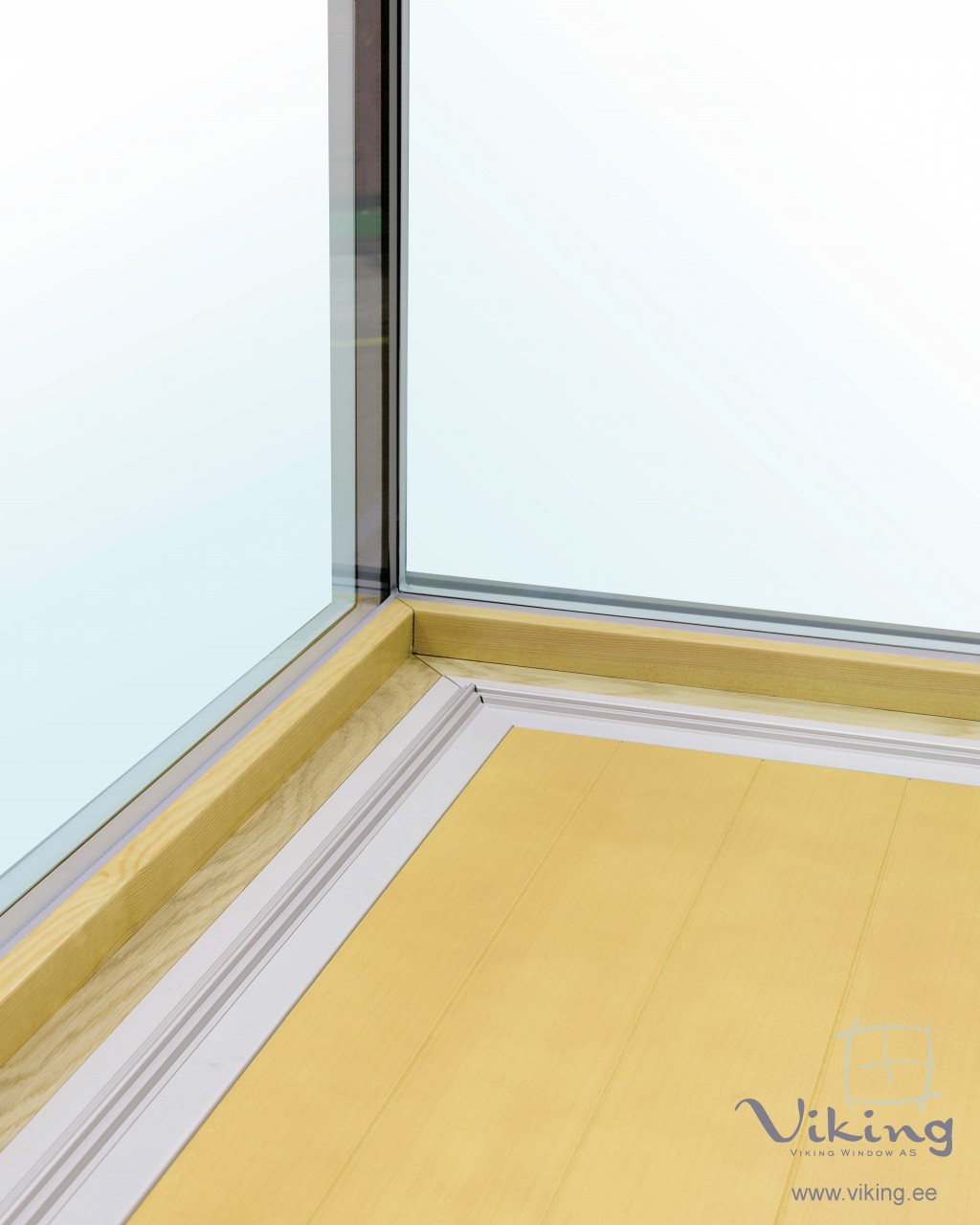

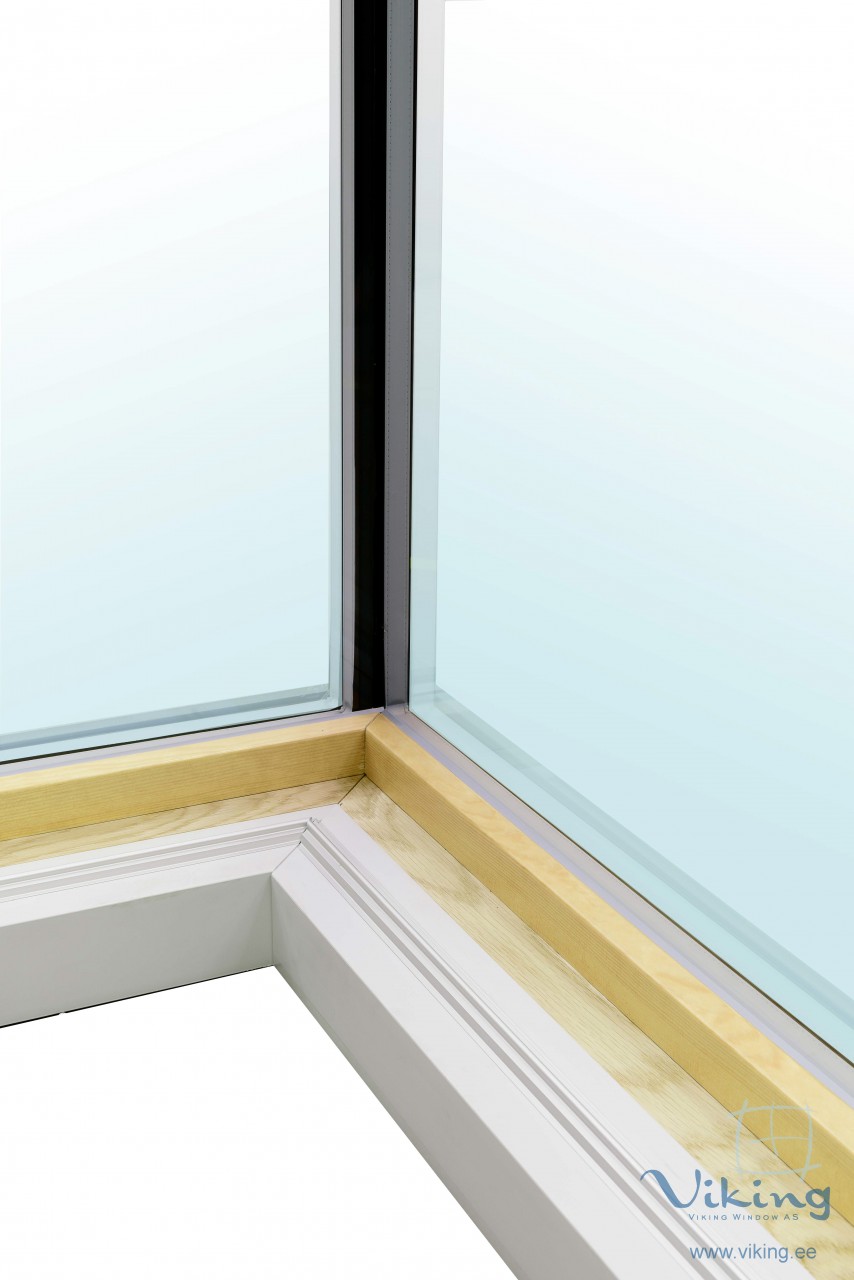

Glazing assembly from exterior side results with nicer visual from the inside - no glazing beads.
